Session 10: ARI Software Ecosystem & ROS2 Fundamentals¶

Week: 10 Element: ICTPRG439 Element 2.3 Duration: 4 hours Phase: Software Architecture Analysis

Session Introduction¶

This session transitions from hardware exploration to software ecosystem analysis of the ARI humanoid robot platform. We explore the software packages, dependencies, and development environment that power ARI's intelligent behaviors, introducing the critical concept of sim-to-real transfer - how code developed in simulation works on real hardware.

We will analyze the PAL Robotics forks repository to understand professional component evaluation strategies and establish foundational knowledge of ROS2 fundamentals through hands-on tutorials.

This bridges your Session 9 packaging knowledge with real-world robotics systems and prepares you for the upcoming GO2 capstone project (Weeks 13-17). Note: the actual GO2 simulator environment setup happens in Session 13 using WSL2; this session focuses on ROS2 concepts you'll apply there.

Learning Objectives¶

By the end of this session, you will have:

Analyzed PAL Robotics forks repository and forking strategy using real examples
Understood professional component evaluation criteria and decision-making
Completed ROS2 CLI fundamentals using turtlesim tutorials
Understood the sim-to-real pipeline - foundation for GO2 capstone project (setup happens Week 13)

Session Structure¶

PAL Robotics Software Analysis - Repository exploration and forking strategy
Component Evaluation Framework - Using respeaker_ros as a case study
Sim-to-Real Concept - How ARI bridges simulation and hardware
Packaging Ecosystems: Connecting PyPI to ROS2 - How multiple package managers work together
ROS2 Fundamentals - CLI tools, nodes, and communication concepts

Part 1: PAL Robotics Software Ecosystem¶

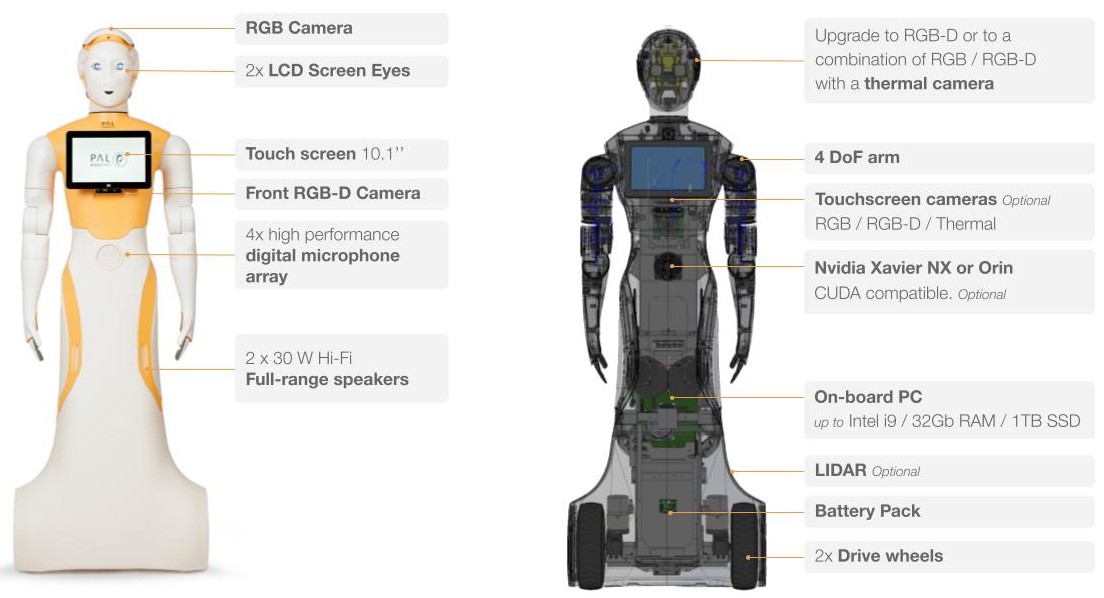

1.1 ARI Robot Hardware Overview¶

Before analyzing software, let's understand the hardware platform that software controls:

Key ARI Hardware Components:

External Features	Internal Components
RGB Camera (head)	On-board PC (up to Intel i9)
2x LCD Screen Eyes	Nvidia Xavier NX or Orin (optional)
Touch screen (10.1") chest	Battery Pack
Front RGB-D Camera	2x Drive wheels
4x Microphone array	LIDAR (optional)
2x Hi-Fi Speakers	4 DoF arm

The combination of rich sensors, powerful computing, and ROS2 software enables ARI to perform complex tasks. Understanding this hardware context helps you appreciate why certain software packages exist.

1.2 PAL Robotics Forking Strategy¶

Explore the PAL Robotics forks repository to understand their professional approach:

Repository URL: https://github.com/pal-robotics-forks

PAL Robotics maintains over 200 forked repositories rather than using upstream packages directly. Let's examine why through a specific example.

Case Study: ReSpeaker ROS Fork¶

Original: https://github.com/respeaker/respeaker_ros
PAL Fork: https://github.com/pal-robotics-forks/respeaker_ros/tree/816ea97c29aa2894fcf1b96e908ce6f98fd68245

ReSpeaker Microphone Array

ReSpeaker is a 4-microphone array (not a speaker despite the name) used for: - Speech recognition in noisy environments - Sound source localization ("Where did that voice come from?") - Multi-channel audio processing - Wake word detection ("Hey ARI")

Why PAL forked instead of using upstream:

Issue	PAL's Solution	Business Benefit
Python 3 compatibility	Updated package for ROS Noetic	Works with modern ROS
ARI-specific audio tuning	Custom audio processing parameters	Optimized for ARI's microphone placement
Version stability	Locked to specific tested commit	No unexpected breaking changes in production
Security patches	Applied without waiting for upstream	Fast security updates for customer deployments

1.3 Key Package Categories¶

PAL Robotics maintains forks across these categories:

Category	Examples	Purpose
Navigation & Localization	SLAM, path planning	Move autonomously
Perception & Vision	OpenCV, point cloud	Understand environment
Manipulation & Control	Arm control, grippers	Interact with objects
Audio Processing	respeaker_ros, speech recognition	Human-robot interaction

Part 2: Component Evaluation Framework¶

Using the respeaker_ros example, let's understand how to evaluate components professionally.

2.1 Evaluation Criteria¶

When PAL Robotics evaluated the original respeaker_ros package:

✅ Functionality Assessment¶

Does it meet requirements? ✓ Provides 4-microphone array access
Performance acceptable? ✓ Real-time audio processing
Required features present? ⚠️ Missing ARI-specific tuning

✅ Technical Quality¶

Code quality? ✓ Well-structured ROS package
Documentation? ⚠️ Basic documentation, missing advanced usage
Testing? ⚠️ Limited automated tests

❌ Maintenance & Support¶

Active development? ❌ Last commit >1 year ago
Community support? ⚠️ Issues not regularly addressed
Python 3 support? ❌ Still using Python 2

🔄 Strategic Decision: FORK¶

PAL's evaluation outcome: Fork and maintain internally because:

Core functionality is solid
Upstream maintenance is insufficient for production use
ARI-specific modifications needed
Can't risk upstream breaking changes

2.2 Component Decision Framework¶

flowchart TD
    A["🔍 Assess Functionality<br/>Does it solve our problem?"] --> B["✓ Yes"]
    A --> C["✗ No"]
    B --> D["🏗️ Check Quality<br/>Is it well-built?"]
    C --> Avoid1["❌ AVOID<br/>Wrong tool"]
    D --> E["⚙️ Evaluate Support<br/>Is it actively maintained?"]
    E --> F["✓ Active & Well-maintained"]
    E --> G["⚠️ Unmaintained"]
    E --> H["✗ Abandoned"]
    F --> Use["✅ USE UPSTREAM<br/>Well-built, maintained<br/>meets needs exactly"]
    G --> Fork["🔗 FORK<br/>Good code, needs updates<br/>robot-specific tuning"]
    H --> BuildOrFork["🔄 FORK or<br/>BUILD CUSTOM<br/>Core value present but<br/>needs significant work"]
    Avoid1 --> End["DECISION<br/>MADE"]
    Use --> End
    Fork --> End
    BuildOrFork --> End
    H --> Avoid2["❌ AVOID<br/>Too much work needed"]
    Avoid2 --> End

    style Use fill:#90EE90
    style Fork fill:#FFD700
    style BuildOrFork fill:#FFA500
    style Avoid1 fill:#FF6B6B
    style Avoid2 fill:#FF6B6B

Decision outcomes:

✅ Use upstream: Well-maintained, meets needs exactly
🔗 Fork: Good code, poor maintenance, needs customization
🔄 Build custom: No suitable options, highly specialized needs
❌ Avoid: Poor quality, incompatible, or unnecessary complexity

Part 3: Sim-to-Real Transfer¶

One of ARI's greatest strengths is code developed in simulation that works on real hardware. This concept will be crucial for your GO2 capstone project.

Why Sim-to-Real Matters¶

flowchart TD
    A["✍️ Write Algorithm"] --> B["🎮 Test in Gazebo Sim"]
    B --> C["🤖 Run on Real ARI"]
    C --> D["🚀 Deploy to Field"]

    B --> B_note["⚡ Fast iteration<br/>🛡️ Safe testing<br/>💰 Free!"]
    C --> C_note["✓ Same code<br/>✓ Proven to work"]
    D --> D_note["📦 Production Ready"]

    style A fill:#E3F2FD
    style B fill:#FFF3E0
    style C fill:#F3E5F5
    style D fill:#E8F5E9
    style B_note fill:#FFF9C4,stroke:none
    style C_note fill:#FFF9C4,stroke:none
    style D_note fill:#FFF9C4,stroke:none

How ARI Achieves Sim-to-Real¶

Key principle: Abstraction through ROS2

Your Code (doesn't care if simulated or real)
         ↓
    ROS2 Topics/Services
    /robot/cmd_vel → move robot
    /robot/joint_states → read positions
         ↓
    Hardware Drivers (handles the difference)
    ├─ Simulation driver: talks to Gazebo
    └─ Real robot driver: talks to actual hardware

The same move() call works in simulation OR on real hardware, because ROS2 abstracts the difference.

ARI Simulation with Gazebo¶

PAL Robotics provides official simulation support for ARI using Gazebo, an open-source 3D robot simulator. You can launch ARI in simulation with a single command:

source /opt/pal/${PAL_DISTRO}/setup.bash
ros2 launch ari_gazebo ari_gazebo.launch.py

ARI Robot in Gazebo Simulation — ARI robot simulated in Gazebo - same code works on real hardware

Available simulation environments:

World	Description	Use Case
Empty world	Default, no objects	Basic testing, algorithm development
Small office	Office environment with furniture	Navigation testing, social scenarios
Custom worlds	PAL Gazebo worlds repository	Specialized environments

Reference: PAL Robotics ARI Simulation Documentation

ARI Simulation in Action¶

Watch ARI operating in the Gazebo simulation environment:

ARI humanoid robot in Gazebo simulation - demonstrating autonomous navigation and interaction capabilities

Notice how the simulated ARI performs the same tasks that would work on the physical robot - this is the power of sim-to-real transfer through ROS2 abstraction.

Connection to GO2 Capstone¶

This same pattern applies to your upcoming GO2 project:

Weeks 13-15: Develop GO2Controller in Gazebo simulation
Week 16: Test integration and prepare for real hardware
Week 17: Document sim-to-real deployment process

Industrial Sim-to-Real: NVIDIA Isaac Lab¶

While ARI uses Gazebo for simulation, industrial applications often require more advanced simulation frameworks. NVIDIA Isaac Lab is an open-source, modular training framework for robot learning that enables contact-rich simulation and reinforcement learning at scale.

Robot arm gear assembly — Industrial robotic assembly trained in simulation and deployed to real hardware

Key capabilities demonstrated in NVIDIA's work:

Feature	Description	Benefit
Zero-shot sim-to-real	Policy trained in simulation deploys directly to real robot without fine-tuning	Reduces development time significantly
Domain randomization	Varying robot dynamics (friction, damping) and observation noise during training	Makes policies robust to real-world variation
Impedance control	Compliant, soft interactions with objects	Safe contact-rich manipulation
Parallel environments	Thousands of simulated robots training simultaneously	Fast policy learning

Real-world example: NVIDIA demonstrated a gear assembly task on a UR10e industrial robot:

Trained policies in Isaac Lab using reinforcement learning (PPO algorithm)
Deployed using NVIDIA Isaac ROS (ROS2-based acceleration)
Used UR's direct torque control interface for impedance control
Achieved successful zero-shot transfer to real hardware

Sim-to-real transfer workflow: Perception → Policy → Impedance Controller → Real Robot

Technologies used:

Isaac Lab - GPU-accelerated simulation and RL training
Isaac Sim - Physics simulation (Isaac Sim 4.5)
Isaac ROS - ROS2 packages for perception (Segment Anything, FoundationPose)
UR10e torque interface - Low-level torque control for impedance control

Why this matters for your education: The techniques used here (domain randomization, impedance control, sim-to-real abstraction) are the same principles that make ARI's simulation work. Understanding this industrial application gives you insight into how professional robotics companies bridge the simulation-to-reality gap.

Reference: Bridging the Sim-to-Real Gap | NVIDIA Developer Blog

Sim-to-Real Best Practices¶

Whether working with ARI, GO2, or industrial robots, these principles ensure successful sim-to-real transfer:

Practice	Description	Implementation
Abstraction layers	Keep business logic separate from hardware	ROS2 topics/services
Domain randomization	Train with varied conditions	Randomize friction, lighting, object poses
Progressive complexity	Start simple, add complexity	Empty world → office world → custom
Testing in simulation	Verify before real hardware	Same interfaces, different drivers
Impedance control	Soft, compliant interactions	Critical for contact-rich tasks

Part 4: Packaging Ecosystems: Connecting PyPI to ROS2¶

Connecting your Session 9 PyPI knowledge to how package management works in robotics — where multiple ecosystems (pip, apt, colcon, rosdep) work together.

4.1 Standard Python Package Structure¶

Every professional Python package follows PEP 517 conventions:

my-package/
├── pyproject.toml          # Package metadata & build config
├── README.md               # Project overview
├── LICENSE                  # Open source license
├── src/
│   └── my_package/
│       ├── __init__.py
│       └── module.py
└── tests/
    └── test_module.py

GO2 Capstone Connection

Your go2_wave package (Weeks 14-17) will follow this same structure — as a ROS2 package with package.xml and setup.py. You'll develop it on WSL2 in Week 13 after the simulator is installed, but these Python packaging concepts apply directly.

4.2 PyPI: The Python Package Index¶

Recall from Session 9:

Concept	What It Does	Why It Matters
PyPI	Central repository for Python packages	Anyone can `pip install` your code
Test PyPI	Practice repository	Safe to experiment without affecting real packages
Semantic Versioning	`major.minor.patch` numbering	Users know what changed between versions
pyproject.toml	Package metadata file	Defines name, version, dependencies, author
Build tools	`python -m build`	Creates distributable `.whl` and `.tar.gz` files
twine	Upload tool	Publishes packages to PyPI

4.3 From PyPI to Robotics Packaging¶

In robotics, you encounter multiple package ecosystems working together:

Ecosystem	Tool	Repository	What Gets Installed
Python	`pip install`	PyPI	Python libraries (numpy, opencv-python)
System	`apt install`	Ubuntu repos	OS packages, ROS2 core binaries
ROS2	`colcon build`	Source (GitHub)	ROS2 packages from source code
ROS2 deps	`rosdep install`	rosdistro	Resolves cross-ecosystem dependencies

Why This Matters for GO2

Your GO2 capstone will use all four ecosystems, set up in Week 13:

apt install → ROS2 Jazzy, Gazebo Harmonic (via WSL2 one-shot script)
pip install → Python dependencies for your controller
colcon build → Build your go2_wave package from source
rosdep install → Resolve dependencies declared in package.xml

4.4 Key Packaging Principles¶

What you learned in Session 9 applies everywhere:

Versioning → Tag releases so users know what they're getting
Dependencies → Declare what your package needs to run
Documentation → README, docstrings, API docs
Licensing → Tell users how they can use your code
Distribution → Make it easy for others to install

Part 5: ROS2 Fundamentals¶

We'll use ROS2 fundamentals to test our development environment and prepare for the GO2 capstone project.

5.1 Official Tutorial¶

Follow the official ROS2 tutorial: Beginner: CLI tools Using turtlesim

5.2 Core ROS2 Concepts¶

Concept	Purpose	GO2 Application
Nodes	Independent computation units	`go2_controller`, `camera_driver`
Topics	Asynchronous message passing	`/go2/cmd_vel`, `/go2/joint_states`
Services	Synchronous request-response	`sit()`, `stand()`, `wave()`
Parameters	Configuration values	wave speed, joint limits

5.3 Turtlesim Exploration¶

The tutorial demonstrates concepts you'll apply to GO2:

✓ Node launching → Launch GO2 controller
✓ Topic publishing → Send movement commands
✓ Service calling → Trigger behaviors (sit, wave)
✓ Parameter modification → Tune behavior parameters
✓ RQT visualization → Monitor robot state

Testing Goal: Verify your development environment works before starting GO2 project.

Check Your Understanding¶

Q1: Why did PAL Robotics fork respeaker_ros instead of using upstream?

Answer

Upstream was unmaintained (Python 2, old ROS), but core functionality was solid. Forking allowed PAL to add ARI-specific features, ensure Python 3 compatibility, and control version stability for production deployments.

Q2: What are the four main criteria for evaluating a software component?

Answer

Functionality - Does it solve your problem?
Quality - Is it well-built and documented?
Support - Is it actively maintained?
Strategic fit - Does it align with your project needs?

Q3: How does sim-to-real transfer work in ROS2?

Answer

ROS2 abstracts hardware through topics and services. Your code sends commands to /cmd_vel. In simulation, Gazebo listens. On real hardware, robot drivers listen. Same interface, different implementation.

Q4: How will you apply these concepts in the GO2 capstone project?

Answer

Week 13: Evaluate go2_ros2_sim_py using component criteria. Weeks 14-15: Develop GO2Controller using ROS2 topics/services. Week 16: Test sim-to-real transfer from Gazebo to real GO2.

Session Summary¶

You've learned:

Professional component evaluation - Using PAL Robotics' respeaker_ros fork as a case study
Forking strategies - When and why to fork vs use upstream packages
Sim-to-real foundations - How ROS2 enables code portability
Packaging ecosystems - PyPI, apt, colcon, rosdep and how they work together
Development environment preparation - Docker-based approach for modern robotics
ROS2 fundamentals - Nodes, topics, services, parameters for GO2 project

Bridge to GO2 Capstone: These skills directly apply to evaluating go2_ros2_sim_py (Week 13) and building your GO2Controller (Weeks 14-17).

Preparation for Next Session¶

Complete turtlesim tutorial if not finished in class
Review component evaluation framework - you'll apply it to GO2 packages
Familiarize yourself with ROS2 concepts - essential for publisher/subscriber patterns
Prepare for Week 13 - Next sessions build to the GO2 simulator setup and capstone project

Additional Resources¶

ROS2 Jazzy Documentation
PAL Robotics ARI Tutorials
Component Evaluation Best Practices - ROS2 package search
Docker for Robotics

Navigation: ← Week 9 | Learning Plan | Week 11 →
